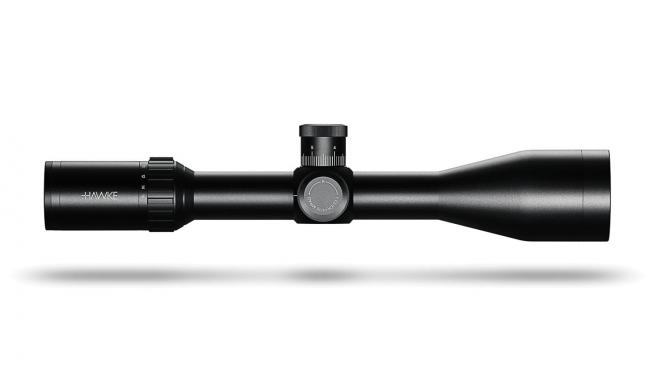

30 WA SF 4-16×50 ½ MIL DOT IR

VANTAGE

< Back

 Click the image to enlarge


PRODUCT SPECIFICATION

Chassis

30mm Mono-tube

Optical System

4-16×

Objective

50mm

Reticle

10x Half Mil Dot

Illumination

Red / Green - 5 Levels

Focus/Parallax

Side Focus - 9m / 10yds to Infinity

Field of View: m @100m / ft @100yds

9.6 - 2.6m / 28.8 - 7.8ft

Eye relief

90mm / 3.5″

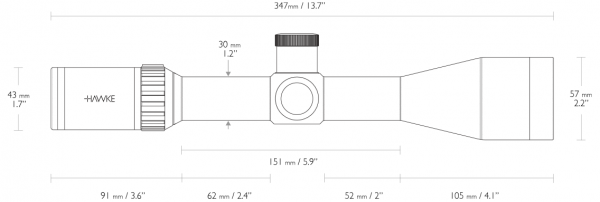

Length

347mm / 13.7″

Weight

740g / 26.1oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.

FURTHER INFORMATION

Material

Aluminium

Exit Pupil

12.5 - 3.1mm / 0.49 - 0.12″

Ocular Type

Fast Focus

Lens Coating

Fully Multi-Coated - 11 Layers

Power Selector Style

Knurled Posi-Grip

Focal Plane

Second Focal Plane (SFP)

Warranty

Hawke Worldwide Warranty

Elevation Increment

110 MRAD

Elevation Adjustment Range

28 MRAD

Windage Increment

110 MRAD

Windage Adjustment Range

28 MRAD

Turret Caps

Yes

Turret Type:

Exposed. Locking

PRODUCT DETAILS

  • Wide Angle optical system
  • 11 layer fully multi-coated optics for excellent clarity
  • Side focus control for parallax adjustment to infinity
  • 30mm mono-tube chassis for superior strength
  • Glass etched reticle with red and green illumination
  • Rheostat on saddle offers 5 levels of brightness
  • 1⁄10 MRAD exposed and locking turrets
  • Fast focus eyebell and high torque zoom ring

Available Reticles:

optic circle 12

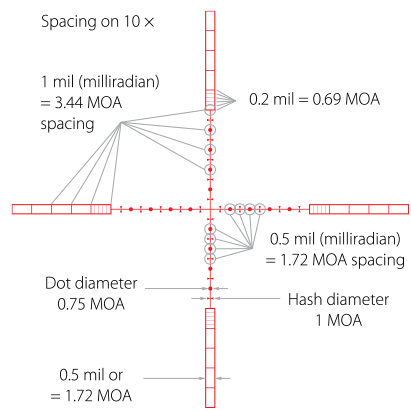

10x HALF MIL DOT RETICLE

Accurate mil spacing on 10×. Features dots and ties at half mil spacing, ensuring that there is always an aim point available. Glass etched fully floating reticle.

One of the additional benefits of the 10x Half Mil Dot is the mil spacing and 0.2 mil spacing segments of the hollow bars which can be used to accurately range find targets.
