SWAROVSKI EL RANGE 8X42 BINOCULARS

SWAROVSKI

< Back

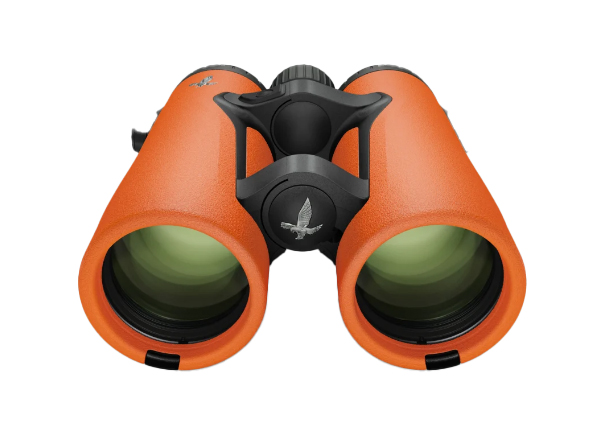

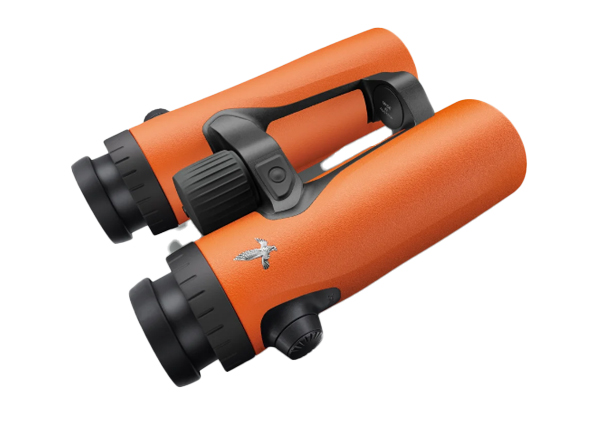

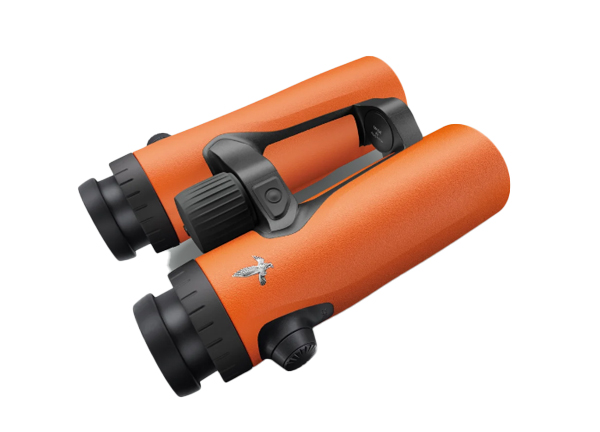

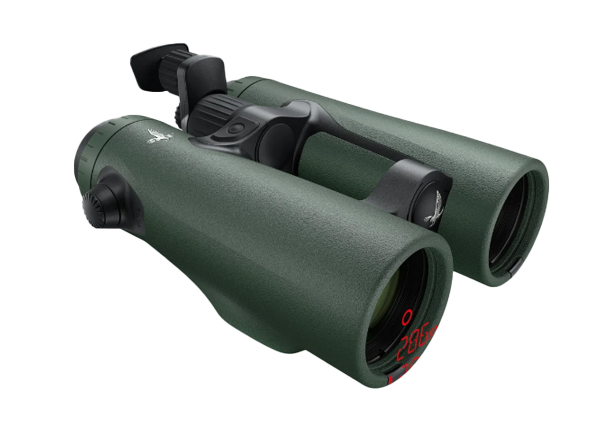

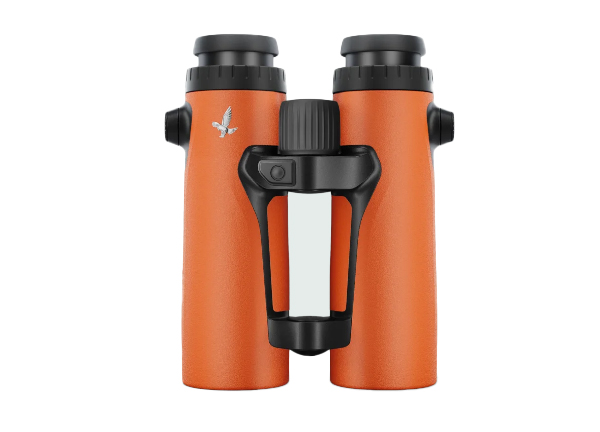

EL Range 8x42

EL Range 8x42 2

EL Range 8x42 3

EL Range 8x42 4

EL Range 8x42 5

EL Range 8x42 6

 Click the image to enlarge


TECHNICAL SPECIFICATION

Colour

Green, Orange

Objective

8x
Magnification

42 mm
Effective objective lens diameter

5.3 mm
Exit pupil diameter

19 mm
exit-pupil-distance-eye-relief-mm

140 m/1000m
Field of view m at 1000m / ft at 1,000yds

8 °
Field of view degrees

8 °
Field of view with eye glasses (°)

61 °
Field of view apparent

5 m
Shortest focusing distance

-7 to +5 dpt
Diopter adjustment

90 %
Light transmission

56-74 mm
Pupil distance

18.3
Twilight factor acc. to DIN-58388

Size & Weight

172 mm
Length in mm.

136 mm
Width in mm.

79 mm
Height in mm.

930 g
Weight without batteries

Environment & Conditions

-25 to +55 / -10 to +55 °C
functional-temperature-mechanically-electronically

Measurement

10 - 2000 m
Measuring range in yds./ m.

1 m
Measuring accuracy in yds./ m.

≤ 0.5 s
Measuring time

± 90 °
Angular measurement

Class 1 EN/FDA
Laser

Yard / Meter
Units

2,000 measurements
Life cycle

Digital

CR2
Battery

PRODUCT DETAILS

The EL RANGE is the latest demonstration of the innovativeness that lies at the heart of SWAROVSKI OPTIK. It combines SWAROVISION technology with precise range measurement. Spot game quickly and accurately thanks to the precision and edge-to-edge sharpness of SWAROVISION technology. The EL Range can be configured to suit your specific needs and you can transfer your own ballistics data, along with air pressure and temperature readings, allowing you to make an accurate assessment of every hunting situation. The innovative tracking assistant helps you to narrow down the area where your last shot hit the target. Accuracy can also mean versatility. The EL Range 8x42 binoculars are ideal for numerous viewing opportunities right up to twilight. Their expansive field of view and large exit pupil ensure optimum comfort during observation.

Colour:

green    orange

Scope of Delivery:

- FSB functional sidebag
- UCS-R universal comfort strap with battery compartment
- Eyepiece cover
- Objective lens cover
- BT tool
- Soap & Brush
