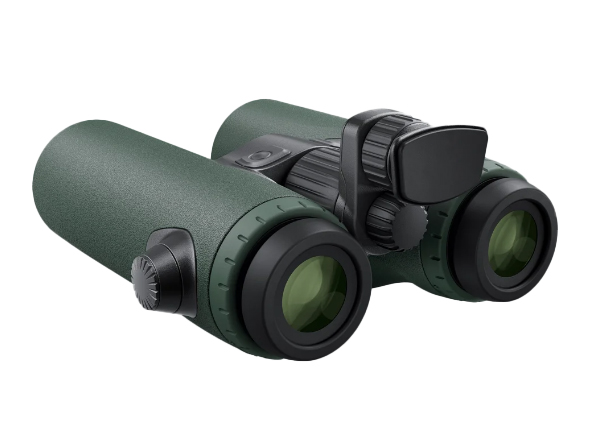

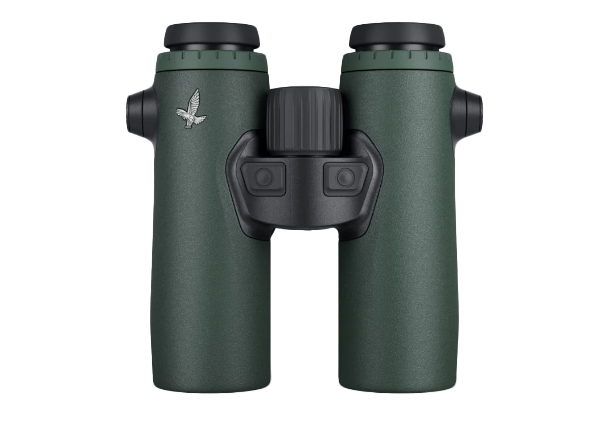

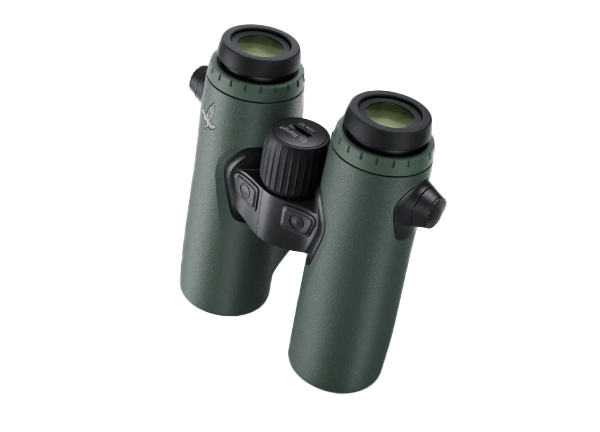

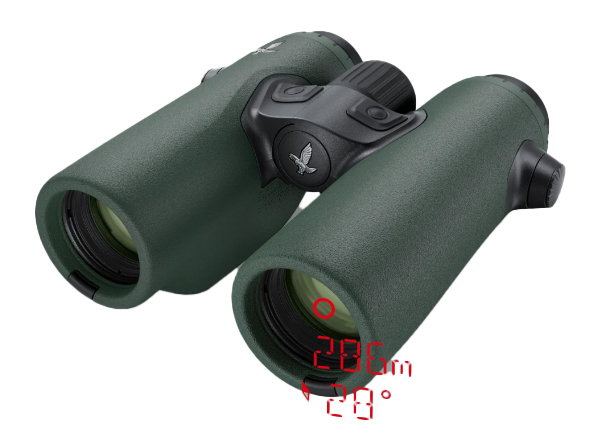

EL Range 10x32

EL Range 10x32 2EL Range 10x32 3

EL Range 10x32 4

EL Range 10x32 5EL Range 10x32 6

EL Range 10x32 7

 Click the image to enlarge


TECHNICAL SPECIFICATION

Colour

Green

Objective

10x
Magnification

32 mm
Effective objective lens diameter

3.2 mm
Exit pupil diameter

16 mm
exit-pupil-distance-eye-relief-mm

110 m/1000m
Field of view m at 1000m / ft at 1,000yds

6.3 °
Field of view degrees

6.3 °
Field of view with eye glasses (°)

61 °
Field of view apparent

5 m
Shortest focusing distance

-7 to +5 dpt
Diopter adjustment

90 %
Light transmission

56-74 mm
Pupil distance

17.9
Twilight factor acc. to DIN-58388

Size & Weight

143 mm
Length in mm.

131 mm
Width in mm.

69 mm
Height in mm.

680 g
Weight without batteries

Environment & Conditions

-25 to +55 / -10 to +55 °C
functional-temperature-mechanically-electronically

Measurement

9 - 1500 m
Measuring range in yds./ m.

1 m
Measuring accuracy in yds./ m.

≤ 0.5 s
Measuring time

± 90 °
Angular measurement

Class 1 EN/FDA
Laser

Yard / Meter
Units

2,000 measurements
Life cycle

Digital

CR2
Battery

PRODUCT DETAILS

These lightweight binoculars with rangefinder and tracking assistant accompany you on all your hunting adventures, especially in rough terrain. The EL Range 10x32 is the perfect choice whenever you need compact binoculars to see all the vital details.

Colour:

green

Scope of delivery:

- FSB functional sidebag
- UCS-R universal comfort strap with battery compartment
- Eyepiece cover
- Objective lens cover
- BT tool
- Microfiber cloth
- Soap & Brush

Product Description:

  • Compact binoculars with tracking assistant

  • Ground-breakingly lightweight: 25 ounces (680 grams)

  • With rangefinder and angle measurement

  • Customizable with the EL Range Configurator App

  • Suitable for right- and left-handers

Tracking Assistant:

The integrated tracking assistant helps you to track your target by guiding you to where you fired your last shot. You can use this function via the EL Range Configurator App on your phone or directly on your EL Range binoculars.
