SAUER 505

Click the image to enlarge


TECHNICAL DATA

Caliber

Mini: .222 Rem., .223 Rem.
Medium: .243 Win., .270 Win., 6,5×55 SE, 6,5 Creedmoor, .308 Win., .30-06 Spring., 7×64, 8×57 IS, 9,3×62
Short Magnum: .270 WSM, 6,5 PRC, 8,5×55 Blaser
Magnum: 7 mm Rem. Mag., .300 Win. Mag., 8×68 S, .375 H&H
Swiss: 10,3×60 R


Total Weight

Wood (ErgoLux): approx. 3450g / 7,6 lbs
Polymer (ErgoMax black): approx. 3520g / 7,7 lbs
Polymer (Synchro XT Black): 3.550 g / 7,8 lbs
Carbon (Synchro XTC): approx. 3230g / 1,1 lbs


Total Length

101,5 cm / 40 inch (at barrel length 51 cm / 20 inch)
106,5 cm / 42 inch (at barrel length 56 cm / 20 inch)
112,5 cm / 44 inch (at barrel length 62 cm / 24 inch)


Barrel Length Standard

Medium: 51 cm / 20 inch (optional 42 cm / 16,5 inch, 47 cm / 18,5 inch, 56 cm / 22 inch)
Magnum: 62 cm / 24 inch (optional 56 cm / 22 inch)


Barrel Contour
17 mm (optional 19 mm)

Barrel Surface
plasma nitrated, blued (DLC optional)

Twist-Rate

Trigger Weight
350 g / 750 g /1000 g / 1250 g ( 0,77 lbs / 1,66 lbs / 2,2 lbs / 2,8 lbs)

Magazine Capacity

Medium: 3 rounds (optional 5 rounds)
Magnum: 2 rounds (optional 5 rounds)


Muzzle Thread
M15X1 (M17X1 with Heavy-Contour)

Sight
optional

Stock Material
XT: Polymer Black
XTC: Carbon
Wood: Wood Grades 02 to 10

Adjustable Comb
Synchro XT: up to 6 cm / 2,4 inch
Synchro XTC: up to 6 cm / 2,4 inch

Scope Mount
Saddle Mount



*Serial Configuration: Stock with receiver and bolt + 3 round magazine, 51 cm barrel, M15x1, with detachable sling swivels, standard barrel contour

All other technical details and configuration options can be found in the price list.

THE CONVINCING PROPERTIES OF A BOLT ACTION RIFLE THAT IS MANUFACTURED TO BE THE BEST.

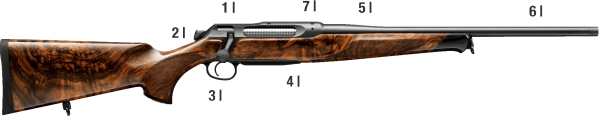

Sauer505 TechnischeDetails Desktop

1 | Completely new Action.

  • Sturdy, robust receiver
  • Silky smooth bolt action
  • Super silent, extremely fast

2 | Easy manual cocking.

  • Comfortable cocking and uncocking
  • Incredibly silent

3 | Ideal Trigger Pull Weight.

  • Adjustable trigger pull weight
  • For any hunting situation: weights 350, 750, 1.000 and 1250 g

4 | Safe Maglock.

  • Integrated magazine safety
  • No unintended magazine release

5 | Modular Versatility.

  • One system, 19 calibers
  • Easy change of calibers
  • Quick stock exchange

6 | Legendary Sauer Precision.

  • Cold hammered rifle barrel
  • Perfect symbiosis of all components

7 | Proven Saddle Mount.

  • Easy to mount
  • 100 % return to zero

THREE CONFIGURATION PACKAGES.
THREE PERFECT RIFLES.

In addition to individual configuration, we offer three configuration packages that have been put together by experienced hunters. The focus is always on the barrel, bolt assembly and receiver. You can decide whether you would like your rifle with a polymer, carbon fibre or wooden stock, and with or without an adjustable comb.

BEAUTY IN PERFECTION: THE ELEGANCE PACKAGE.

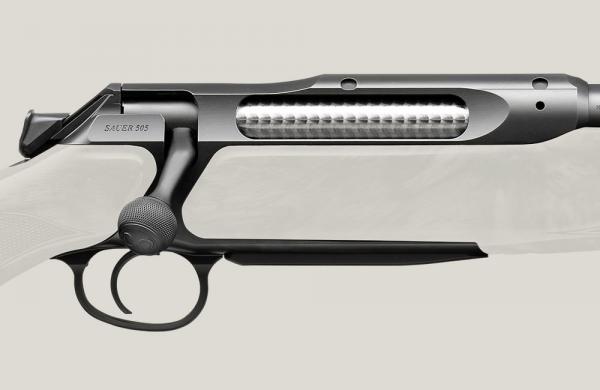

A top-quality gem: with DLC (diamond like carbon) coated surfaces on the barrel and receiver as well as a jewelled bolt. The bolt knob is knurled and topped with the Sauer logo. Luxurious features that can shine fully in combination with a wooden stock just as with a carbon fibre or polymer stock.

Sauer 505 Holz ErgoLux Elegance Paket re 2000px 1

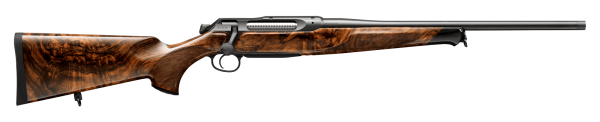

Sauer 505 with ErgoLux stock and configuration package Elegance

Sauer 505 Carbon Synchro XTC Elegance Paket re 2000px 1

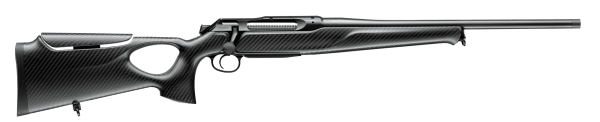

Sauer 505 with Synchro XTC stock and configuration package Elegance

Sauer 505 Polymer ErgoMax Black Elegance Paket re 2000px

Sauer 505 with ErgoMax stock and configuration package Elegance

Sauer 505 Website Details Pakete Elegance 1000x650px



STYLISH IN ANY SITUATION: THE HIGHLAND PACKAGE.

Fluted barrel and DLC coating on the barrel, the receiver and even the bolt assembly form the basis for building. For example, a lightweight and easy to handle hunting rifle in combination with a carbon fibre stock or an allweather rifle with a polymer stock that can withstand any conditions. This configuration package is also captivating in combination with a beautiful wooden stock. Not least thanks to the elegantly knurled bolt knob.

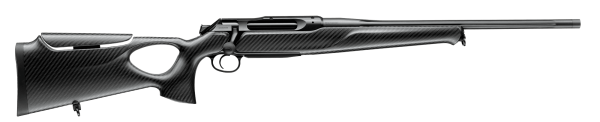

Sauer 505 Carbon Synchro XTC Highland Paket re 2000px

Sauer 505 with Synchro XTC stock and configuration package Highland

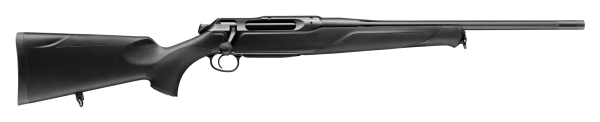

Sauer 505 Polymer ErgoMax Black Highland Paket re 2000px

Sauer 505 with ErgoMax stock and configuration package Highland

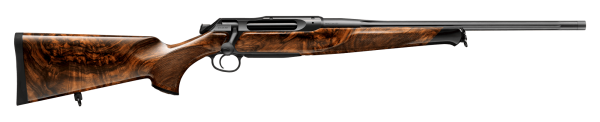

Sauer 505 Holz ErgoLux Highland Paket re 2000px

Sauer 505 with ErgoLux stock and configuration package Highland

Sauer 505 Website Details Pakete Outback 1000x650px

TOUGH: THE OUTBACK PACKAGE.

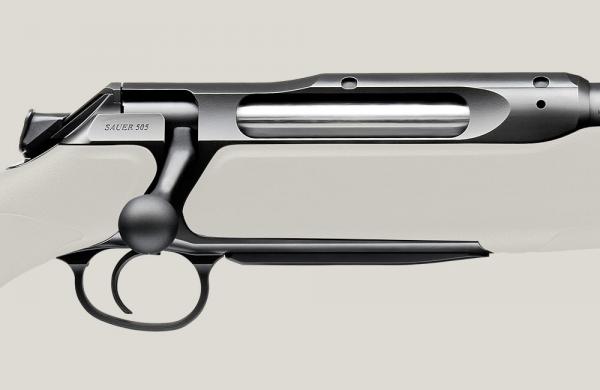

The all-round options for every day. DLC coating on the barrel and receiver as well as a bolt knob made of anodised aluminium produce a sturdy, robust hunting rifle. Whether as rifle for the hide with an elegant wooden stock, or with a polymer or carbon fibre thumb hole stock for driven hunts: This package forms the basis for a variety of possibilities.

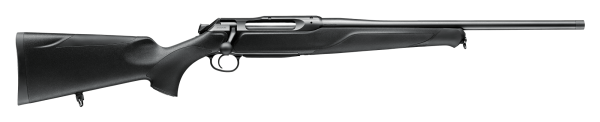

Sauer 505 Polymer ErgoMax Black Outback Paket re 2000px 1

 Sauer 505 with ErgoMax stock and configuration package Outback

Sauer 505 Carbon Synchro XTC Outback Paket re 2000px

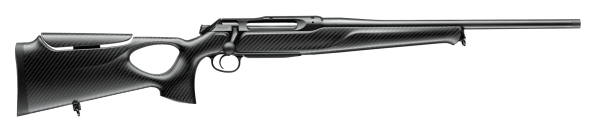

Sauer 505 with Synchro XTC stock and configuration package Elegance

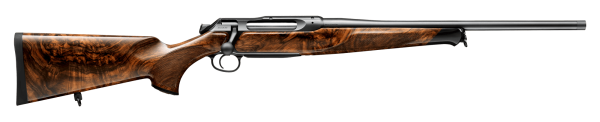

Sauer 505 Holz ErgoLux Outback Paket 2000px

Sauer 505 with ErgoLux stock and configuration package Elegance

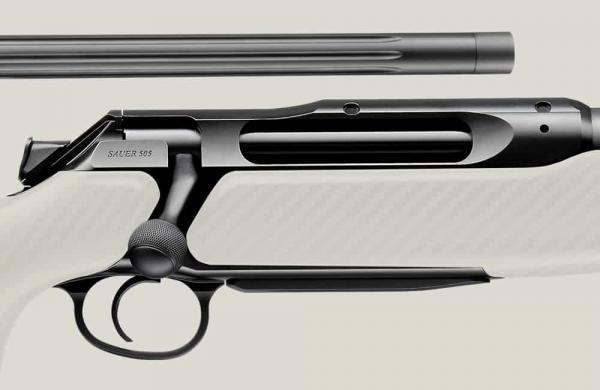

Sauer 505 Website Details Pakete Highland 1000x650px



DESIGNED TO BE THE MOST BEAUTIFUL BOLT ACTION RIFLE IN THE WORLD.

For more than 270 years, J. P. SAUER & SOHN have been providing hunters with rifles that impress with uncompromising quality, utmost precision and timeless beauty. The latest highlight of this unparalleled history: the new Sauer 505 – an irresistible rifle that will continue to delight for generations.

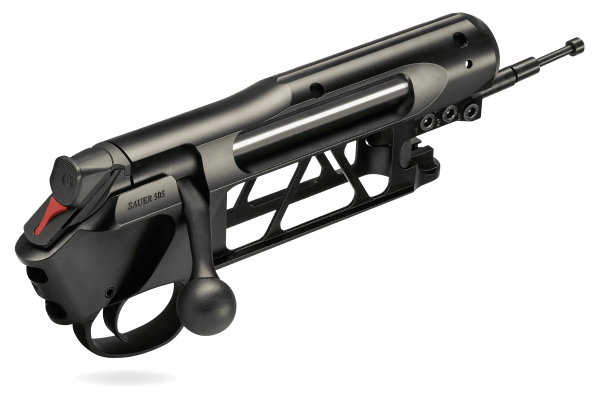

Sauer 505 Website Details System 01 System 1200x800px

A top-of-the-line steel receiver: incredibly robust and, together with the proven saddle mount, a guarantee for absolute precision.

S505 Kammer blank

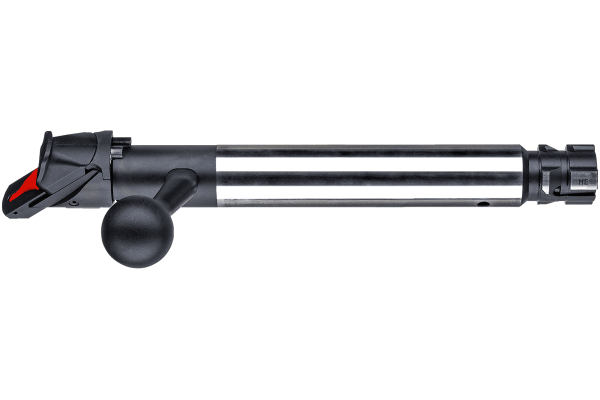

Reloading with the new Sauer 505 is pure joy – thanks to the fantastic bolt action: silky smooth, super quiet and extremely fast.

 Sauer 505 Website Details System 03 Spannschieber 02 1200x800px

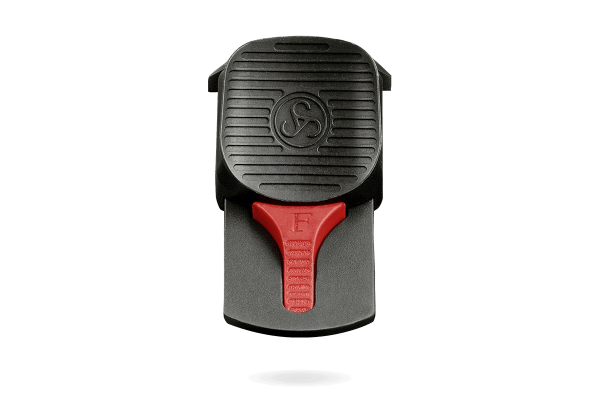

The enhanced manual cocking is very gentle on the thumb. The rifle is cocked only just before the shot. It could not be any safer, quieter or more comfortable.

S505 Abzugseinheit 1

The adjustable Quattro trigger provides the ideal trigger pull for any hunting situation – individually adjustable to the weights 350, 750, 1000 and 1250 grammes.

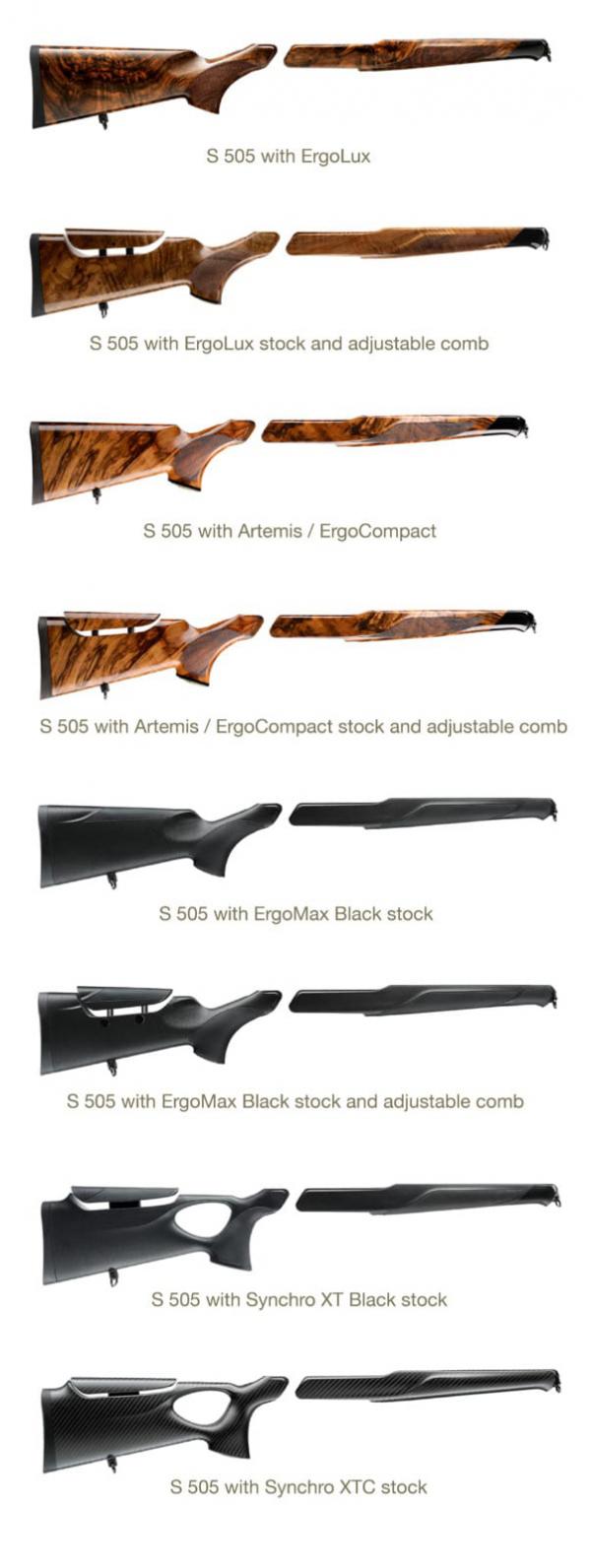

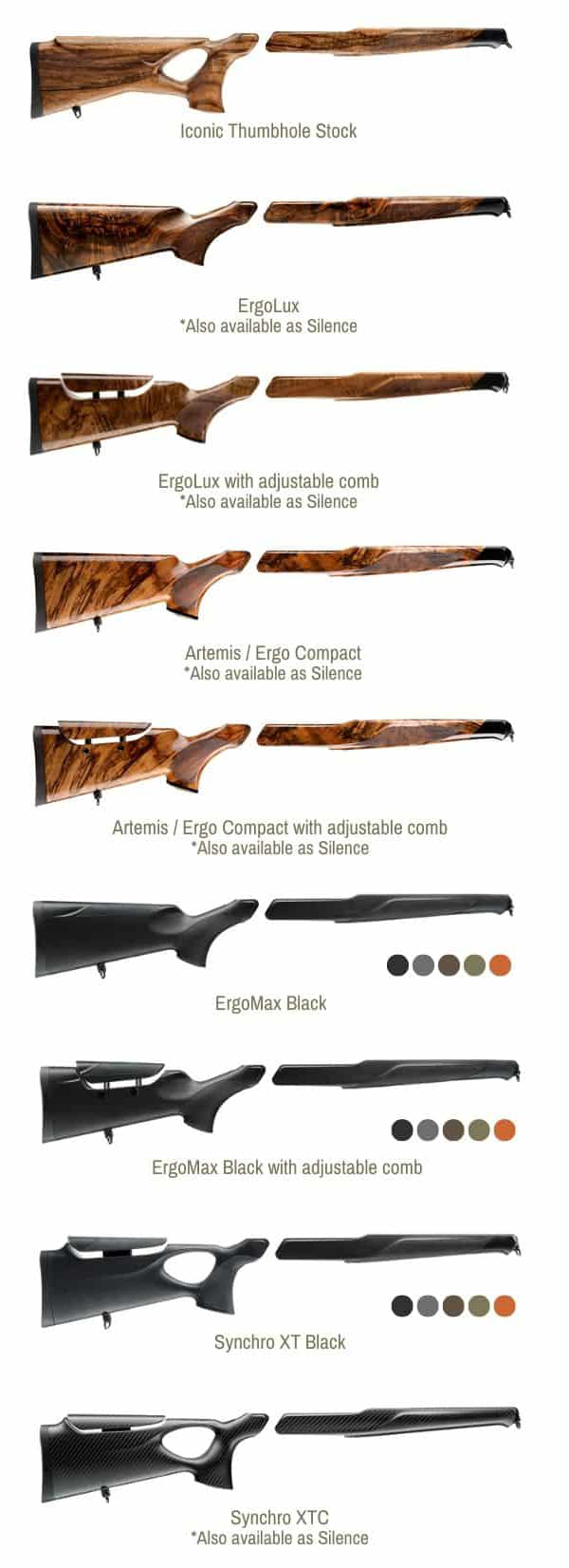

SAUER 505 STOCK OPTIONS
